Stimmung
tuning
afinación
accordage
accordatura
Stimmung
tuning
afinación
accordage
accordatura



Klangoptimierung
sound improvement
mejoramiento del sonido
perfectionnement du son
migliorazione del suono

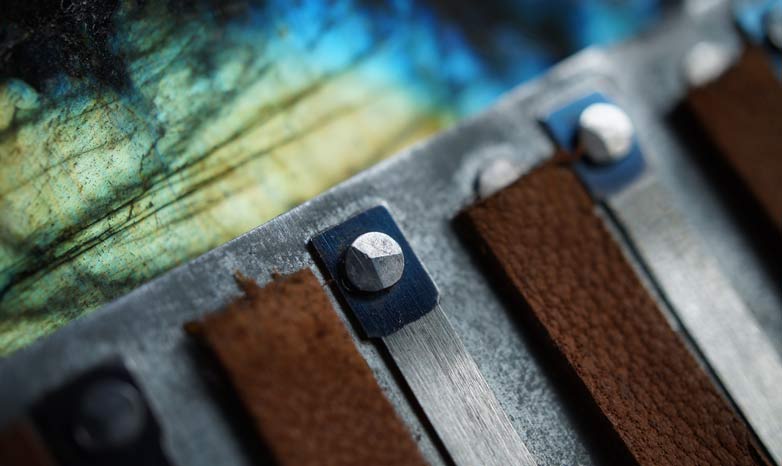

Stimmplatten eines AA-Bandoneons
Stimmzungen und Stimmplatten
sind das Herz unserer Instrumente. Niemals könnte ein Spieler
durch sein Spiel Zungen oder Platten beschädigen. Ein Stimmer
dagegen sehr wohl! Das Stimmen eines Bandoneons ist Vertrauenssache.

... siehe Artikel "Das Verstimmen und was es verursacht"


Stimmplatte
Reeds and reed plates
are the heart of our instruments. A player could never damage a reed or a reedplate by his play. A tuner can! Tuning a Bandoneon is a question of trust.
... see article "Becoming untuned and what causes it"


Lenguetas y peines
son el corazón de nuestros instrumentos. Un bandoneonista nunca podría dañar una lengueta o un peine al tocar. Un afinador sí Afinar un Bandoneón es una cuestión de confianza.


Les anches et les plaques
sont au cœur de nos instruments. Un joueur ne peut jamais endommager les anches ou les plaques en jouant. Un accordeur très bien! Accorder un Bandonéon est une question de confiance.


Ancie e piastre
sono il cuore dei nostri strumenti. Un giocatore non potrebbe mai danno un ancie o di un piastr da giocare. Un accordatore può! L´accordatura di un Bandoneon è una questione di fiducia.
"El Bandoneón suena magníficamente!!!
estoy muy feliz! Es el Bandoneón mejor
afinado que he tenido"

Juan José Mosalini 2018








... mehr
... see the instrument
J.J.Mosalini
Komplettstimmung (Restaurierungsstimmung) Complete tuning (restoration tuning)
afinación completa (afinación de restauración)
accordage complètement (accordage de restauration)
accordatura completa (accordatura di restauro)
Das korrigieren der Ansprache und das Nachstimmen einzelner Töne ist immer möglich (code N01). Schlechte Ansprache oder sich verstimmende Töne sind oft nur Symptome, deren Ursache tiefer liegt. In unseren 80 bis 100 Jahre alten Instrumenten ist die natürliche Klangschönheit und wahre Kraft manchmal nur verschüttet.

Oxidation und Ablagerungen von Staub sind neben der Qualität der Nietverbindung und dem Zustand der Ventile Hauptfaktoren für das verstimmen der Töne. Um einen kraftvollen und freien Klang genauso wie eine dauerhafte Stimmhaltung zu erreichen, empfehle ich je nach Situation eine Komplettstimmung. Das sind neben dem Stimmen umfassende, restaurierende Arbeiten: Reinigung der Zungen, Kontrolle aller Nietverbindungen, neue Lederventile, Stimmung mit neuer Temperatur und Einstellung der Ansprache (Komplettstimmung code N02).

... siehe "Das Verstimmen und was es verursacht"
... siehe "Die Nietverbindung"
Stimmplatte mit Originalventilen
Code N02 Zustandserfassung und Vorbereitung zum Stimmen
Condition assessment and tuning preparation


The correction of the response and the tuning of single notes is always possible (code N01). Poor response or notes, that gets out of tune are mostly symptoms of a deeper cause. The natural beauty of sound and real potency is sometimes only submerged in our 80 to 100 years old bandoneons.

Oxidation and deposits of dust are beside the quality of the rivet contacts and the condition of the leather valves the main factors for the detuning of our instruments.

To get a powerful, free sound and most of all a stable, durable tuning I recommend, depending on the situation a, complete tuning. This is beside the tuning a comprehensive restoration work: Cleaning the reeds, control of the rivet connections, complete new leather valves, tuning in of a new temperament and adjust of the (attack) response (complete tuning code N02).


... see "Becoming untuned and what causes it"
... see "Rivets and riveting in the restoration tuning"
"I have to say that I am totally
in love with my AA now. I feel that
it is the best instrument I never had.
... the response is unbelievable. I
love the sound and especially that
the instrument is so sensitive.
... it is a pleasure to play it!"

Omar Massa (2020)






... mehr
... see the instrument
Omar Massa
Omar Massa
www.reinicke-artists.com
Foto: Camilla Berrio
Herunterstimmen Spezial Downtuning special
bajar el afinación
baisser l´accordage
abbassarsi il accordatura
Im Gegensatz zum Heraufstimmen (Frequenzerhöhung) ist das Herunterstimmen immer ein Eingriff in die Steifigkeit der Stimmzunge. Diese Schwächung führt im Extrem zur übermäßigen Verringerung der Tonstabilität bei Druck (Frequenzverwerfung nach unten). Die Gefahr von Zungenbruch erhöht sich. Mit herkömmlichen Stimmtechniken ist jede Arbeit an den Zungen irreversibel. Wir Stimmer können mit unseren Stimmfeilen nur Material entfernen, nicht hinzufügen.

Durch eine spezielle Technik ist das Herunterstimmen auch über große Distanzen möglich (code N03). Bei dieser Technik wird die durch vormalige (Herauf-) Stimmprozesse verlorene Substanz der Zungen ersetzt. Die natürliche Steifigkeit der Zunge bleibt dabei voll erhalten. Die Instrumentenspezifische Ansprache, Tonstabilität und Klangfarbe bleibt erhalten. Stimmungen von 450 Hz nach 435 Hz sind möglich. Ich empfehle eine Frequenz von a' = 440 bis 442 Hz.
gereinigte Stimmplatte
Code N03 Zustandserfassung und Vorbereitung zum Stimmen
Condition assessment and tuning preparation


In contrast to the uptuning (highering of the frequence) the downtuning is always an intervention in the stiffness of the reed. This weakening leads in it´s extreme to an excessively lowering of the tone stability. Weak notes when played with power and the highering of the risk of reedbreaks is the result. With ordinary tuning techniques, any tuning work is irreversible. With ordinary tuning techniques, we tuners cannot add material with our tuning files, - we only ake away.

With a special method the downtuning even over long distances is possible (code M03). With this special method I replace the lost substance of the reeds from former tuning processes. The natural stiffness of the reeds will be kept completely. The specific response, tone strength and colour of sound will be retained. Special downtuningsfrom 450 Hz to 435 Hz are possible. I recommend a common frequence between a' = 440 to 442 Hz.

A través de una técnica especial que también es posible bajar el afinación de muchos Hertz. La estabilidad del tono, el ataque y el color específico se mantiene. Yo recomiendo una altura entre 440-442 Hz.

Attraverso una tecnica speciale e l´accordatura giù (in basso) anche di molti hertz posibile. La stabilitá del tono, il responso e il colore del suono specifico è mantenuta. Raccomando una altezza tra 440-442 Hz.
Stimmtechniken
Tuning craftsmanship
artesania
métier artisanal
arti manuali
Beim Stimmen verwende ich ausschließlich mechanische Werkzeuge in klassischer Bandoneon-Stimmtradition unter größtmöglicher Wahrung der Stimmzungensubstanz (keine elektrischen Bearbeitungsgeräte).

Tatsächlich kann ein Spieler sein Bandoneon durch das Musizieren niemals schädigen. Auch die härtesten Einsätze in den großen Tangoorchestern seit den 30er-Jahren konnten unsere Instrumente nicht nachhaltig schaden. Unter anderem liegt ein Grund für diese "Unzerstörbarkeit" in der Tatsache, daß wir keine Spannungen im Instrument haben. So gilt hier nicht, was für Saiteninstrumente, vor allem Pianos, gilt. Verschleiß und Altersschäden aus jahrzehntelangen Gebrauch, egal welcher Art, lassen sich am gesamten Instrument sicher und dauerhaft restaurieren.

Dem entgegen steht die Arbeit des Stimmers. Der Stimmer kann mit seinen Stimmfeilen nur Material von den Stimmzungen entfernen, nicht hinzufügen. So ist der Zustand von den Stimmplatten, den Zungen-Nieten und den Stimmzungen selbst der zentrale Aspekt für die technische Bewertung eines klassischen Bandoneons.

Fachmännisch restaurierte Stimmplatten eröffnen nicht nur ihre volle Kraft und Klangschönheit, sie können auch die Stimmung über Jahrzehnte halten. Fachmännisch ausgeführte Stimmungen verändern die Substanz der Stimmzungen dabei so gering, daß auch hier die Lebensdauer eines guten Bandoneons praktisch unbegrenzt ist.
Werkzeuge zum Stimmen eines Bandoneons
Code N Werkzeuge klassischer Bandoneon-Stimmtradition
Tools fof classic bandoneon tuning tradition


My tuning work is only made by hand with mechanical tools (no electric tools) in classic Bandoneon tuning tradition by preserving the substance most efficiently.

Indeed, a player never can damage his Bandoneon by making music. Even the hardest use in the big Tango orchestras from the 1930ies on could not harm our Bandoneons effectively. One reason is the fact, that we have no tensions in our instruments. This is different to all string instruments, specially the piano. Wearout by usage over decades and age, whatever it may is, can always be restored with a safe and good result. In opposition to this is the work of the tuner. The tuner cannot add material to the reed with his tuning file, he only can take material away. The current condition of the reedplates, the reed rivets and the reeds is the central aspect for the evaluation of a classic Bandoneon.

Craftsmanlike restored reedplates not only opens up with it´s natural power and beauty of sound, they can also keep the tuning pitch over decades. Craftsmanlike made tunings change the substance of the reeds in such a insignificantly way, that also here we can expect an indefinite life of a good Bandoneon.
Zungenreinigung cleaning of reeds
limpieza de los lengüetas
débourrage des lames
pulizia delle voce
Die schonende mechanische Reinigung der Zungen ist Teil einer Komplettstimmung. Ich nutze ausschliesslich ein mechanisches Reinigen von Hand. Keine Flüssigkeiten (Säuren) oder Maschinen. Oxidation und Ablagerungen von Staub sind neben der Qualität der Nietverbindung und dem Zustand der Ventile Hauptfaktoren für spätere Frequenzinstabilität, dem verstimmen der Töne.

Oft finden sich bei den klassischen Bandoneons noch die Originalventile. Mit den Lederventilen neben den Stimmzungen ist eine Reinigung der Innenseiten der Zungen und auch die Kontrolle der Nietverbindungen nicht möglich. In dem Fall genauso wie oft auch in den Fällen wo bereits Ventile gewechselt wurden, sind diese grundlegenden Arbeiten von Reinigung und Nietkontrolle nicht passiert. Nur mit guter Grundlage entfaltet das Instrument mit der Stimmung alle Kraft und Schönheit. Eine grundlegend gute Stimmung ist eine Investition für Jahrzehnte.
Vorbereitete Stimmplatte
Code N Vorbereitung zum Stimmen. Reinigung der Zungen
Tuning preparation. The soft cleaning of the reeds


The soft mechanical cleaning of the reeds is part of the complete tuning. I use only a mechanichal process by hand, no liquids (acids) or electric machines. Oxidation and deposits of dust are beside the quality of the rivet contacts and the condition of the leather valves the main factors for the detuning of our instruments.

Often the original valves can still be found on the classic Bandoneons. With the leather valves next to the reeds, cleaning the inside of the reeds and checking the rivet connections is not possible. In this case, as well as often in cases where valves have already been changed, these basic operations of cleaning and rivet control have not happened. Only with good foundation the instrument unfolds all its power and beauty with a new tuning. A fundamentally good tuning is an investment for decades.
Nachnieten restaking of the rivets
remachar de los rivetes
riveter de les rivets
rivetttare dei chiodini
Im Rahmen der Restaurationsstimmung ist die Kontrolle der Nietverbindungen inbegriffen. Die Zungen aller Harmonika-instrumente sind mit dieser einfachen jedoch sehr präzisen und dauerhaften Verbindungstechnik befestigt. Die exakt gestanzten Zungenschlitze und die exakt gebohrten Nietlöcher erzielen einen paßgenauen Sitz (Kaltnietung mit Form- und Kraftschluß). Die Verbindung von Materialien mit Vollnieten soll sich bis in die Bronzezeit zurückverfolgen lassen. Vollnieten werden auch heute noch zur Verbindung voll vollschwingenden Metallteilen verwendet, so im Flugzeugbau.

Die Kontrolle der Nieten ist nur in Verbindung mit dem Wechsel der Zungenventile möglich, da die Ventile die Nietrückseite verdecken. Das Nachnieten geht nur mit sauberen Stimmplatten im Rahmen einer Komplettstimmung. Mehr zu der sog. "Dreischlagtechnik" in der Restaurierung:

.... siehe Artikel "Die Nietverbindung"
Nieten an den Stimmzungen
Code N Kontrolle der Nieten und Nachnieten nach Bedarf
Control of rivets and restaking if necessary


The reeds of all harmonic instruments are attached with this simple but very precise and durable connection technique. The precisely punched tongue slots and the precisely drilled rivet holes achieve a tight fit (cold riveting with form closure and frictional connection). The union of materials with solid rivets should be traced back to the Bronze Age. Solid rivets are still used today to connect fully vibrating metal parts, such as in aircraft building. The control of the rivets of a Bandoneon is only possible in connection with the change of the reed valves. The valves cover the back of the rivets. The riveting works can only be done with clean reedplates in the context of a complete tuning.

... see article "Rivets and riveting in the restoration tuning"
Zungenwechsel change of reeds
cambiar una lengüeta
change d´unu lame
cambiarsi un voce
Sollten einzelne Zungen gewechselt werden müssen, nutze ich ausschließlich passende Originalzungen der entsprechenden Periode aus Altbestand.


If a change of single reeds is necessary, I use only original reeds of the period of old stock.

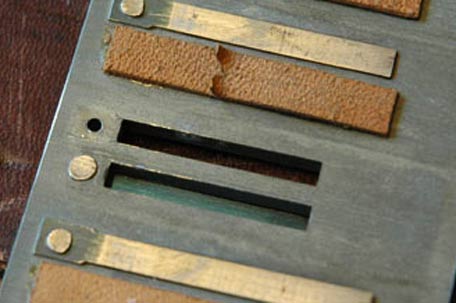

neue Zunge einsetzen
Code M02 Zunge ausfeilen und neue Zunge einpassen
File out of a broken reed and fitting in a new one
Lederventile leather valves
cueros
cuirs
pelle
Beim Wechsel der Ventile können Ganzlederventile oder kombinierte Ventile aus Leder mit Kunststoff verwendet werden.

Echtes Leder auf der Windseite der Ventile ist wichtig um negative Einflüsse auf den Klang, den wir suchen, zu verhindern. Der aus Spielwind um der Zunge generierte Ton passiert als erstes das Ventil. So nutze ich nur Ventile aus echtem Leder bis zum höchsten Ton.

Die kombinierten Leder-/Kunststoffventile sind feiner und leichter als Ganzlederventile. Negative Aspekte von Ganzlederventilen wie Rappel- oder Plopp-Geräusche werden auf ein unmerkliches Minimum reduziert. Ein weiterer Aspekt für meine Empfehlung der Leder-/Kunststoffventile ist die Haltbarkeit. Ganzlederventile reagieren stärker auf unvermeidliche Alterungsprozesse wie das austrocknen und dem damit verbundenen Verlust an Elastizität.

Da der Wechsel von Ventilen die Stimmung beeinflußt, muß nach einem Ventilwechsel in der Regel auch gestimmt werden. So kann man sagen, daß eine gute Stimmung nur solange hält, wie das einwandfreie Funktionieren der Ventile. Unsere Stimmzungen sollten nicht öfter gestimmt werden, als notwendig.

Vorteile der Leder-/Kunststoffventile:
- freier, offener Klang über alle Oktaven
- störungs- und geräuschfreies Arbeiten in jeder Spielsituation
- unempfindlich gegenüber klimatischen Bedingungen
- dauerhaft haltbar

Nachteile der Leder-/Kunststoffventile:
- sind auf Bildern zu verwechseln mit Ganzkunststoff- oder
- Kunstleder/Kunststoff-Ventilen, die ich nicht empfehlen kann.


Stimmplattenventile
Ganzlederventile
full real leather valves
Lederventile
Leder-/Kunststoffventile
leather/fibre valves


The tuning can be realized with full real leather valves or combined valves of real leather with synthetic fibre support.

Real leather on the wind side of each valve is important to avoid negative influences of the typical sound we are looking for. The just generated tone, created by wind, is passing first the valve. So, all valves I offer are of real leather up to the smallest ones on the highest notes.

The combined leather/fibre valves are lighter and more fine than full leather valves. Negative aspects of full leather valves like rattling or plopp noises are eliminated even in the most intense use from lowest pianissimo up to forte forte. The most important aspect for my recommendation for the advanced leather/fibre valves is the durability. Full leather valves age in the constant wind by losing elasticity. Depending on the leather quality, this aging causes various losses of sound qualities.

Due to the fact, that a possible change of poor valves also influences the tuning, we can say, that a good tuning lasts as long as the faultless work of the valves. Our reeds should not be tuned more than necessary.

Positive aspects of leather/fibre valves:
- free and open sound over all octaves
- trouble free and silent work in any playing situation
- insensible against climate conditions
- durable

negative aspects of leather/fibre valves:
- can be mistaken on photos with full plastic valves or synthetic
- leather/plastic valves, that I cannot recommend
Detailliertes Angebot
Vor einem Restaurierungsauftrag erstelle ich nach Begutachtung ein schriftliches und detailliertes Angebot. Dieses detaillierte Angebot bietet 3 Optionen:

1) Minimum / Notwendige Reparaturen
2) Medium / Empfohlene Restaurierungen
3) Maximum / Maximale Revision

Einzelne Restaurierungsergebnisse werden vorab transparent dargestellt. Dazu habe ich die Arbeiten an einem Bandoneon katalogisiert und mit Nummern (Codes) versehen. Kosten und Dauer der 3 Optionen werden vorab festgelegt. 5 Jahre Garantie auf meine Restaurierungsarbeiten ... siehe AGB
Detailed offer
Before a restoration order, I will prepare a written and detailed offer after inspection. This offers 3 options: 1 "Necessary repairs", 2 "Recommended restorations" and 3 "Maximum revision". Individual restoration results are displayed transparently in advance (see also codes). The cost and duration of the 3 options are set in advance. 5 year warranty on my restoration work ... see business conditions


Oferta escrita y detallada
Antes de una orden de restauración, prepararé una oferta escrita y detallada después de la revisión. Esta oferta detallada ofrece 3 opciones: 1 "reparaciones necesarias", 2 "restauraciones recomendadas" y 3 "revisión máxima". Los resultados de restauración individuales se muestran de forma transparente por adelantado (ver también los códigos). El costo y la duración de las 3 opciones se establecen por adelantado. 5 años de garantía en mi trabajo de restauración ... ver cond. generales


Offre écrite et détaillée
Avant une commande de restauration, je préparerai une offre écrite et détaillée après inspection. Cette offre détaillée offre 3 options: 1 "Réparations nécessaires", 2 "Restaurations recommandées" et 3 "Révision maximum". Les résultats de la restauration individuelle sont affichés de manière transparente à l'avance (voir aussi les codes). Le coût et la durée des 3 options sont définis à l'avance. Garantie de 5 ans sur mes travaux de restauration
... voir conditions génerál


Offerta scritta e dettagliata
Prima di un ordine di restauro, preparerò un'offerta scritta e dettagliata dopo l'ispezione. Questa offerta dettagliata offre 3 opzioni: 1 "Riparazioni necessarie", 2 "Restauri consigliati" e 3 "Revisione massima". I risultati del restauro individuale vengono visualizzati in modo trasparente in anticipo (vedere anche i codici). Il costo e la durata delle 3 opzioni sono impostati in anticipo. 5 anni di garanzia sui miei lavori di restauro ... vedi conditioni generali
Restaurierungs-Codes restoration codes códicos de restauración codes de restauracion codici de restauro
A Allgemein A in general A en general A géneralément A in genere
B Mechanik B mechanism B mecanismo B mécanisme B meccanismo
C Montierboden C mounting board C base de montaje C table de la montage C fondello della meccan.
D Tastatur (Knöpfe) D keyboard (buttons) D teclado (botones) D clavier (boutons) D tastiera (bottones)
E Balgrahmen E bellow frame E marcos de fuelle E cadres du sufflet E telaio del mantice
F Gehäusedeckel F housing F tapa F couvercle F coperchie
G Brummkasten (Baß) G baffle (bass) G caja de resonancia (izqu.) G caisse de réson. (basse) G cassetta (sinistra)
H Griffe H handles H manijas H poignées H maniglie
I Luftklappe I valve I válvula I soupape I valvola
J Lufthebel J valve lever J palanca de aire J levier de soupape J leva per la valvola
K Balg K bellow K fuelle K soufflet K mantice
L Kanzellen L reed chambers L soportes de peines L chambres L camere (canali)
M Stimmpl., Zungen & Ventile M plates, reeds, valves M peines, lengüetas & válvulas M plaques, l´anches & peaus M piastre, ancie & valvole
N Stimmung (Intonation) N tuning (intonation) N afinación (entonación) N accordage (intonation) N accordatura (intonaz.)
P Oberflächen P surfaces P superficie P surfaces P superficie
5 Jahre Garantie auf meine Restaurierungsarbeiten (siehe AGB) 5 year warranty on my restoration work (see business condit.)
5 años de garantía en mi trabajo de restauración (ver cond. gen.)
5 ans de garantie sur mes travaux de restauration (voir cond. gén.)
5 anni di garanzia sui miei lavori di restauro (vedi condizioni generali)
